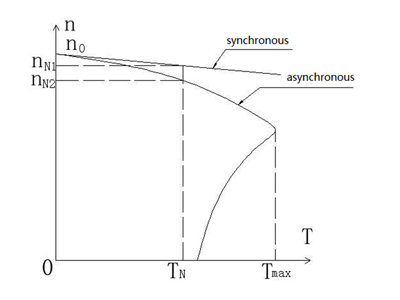

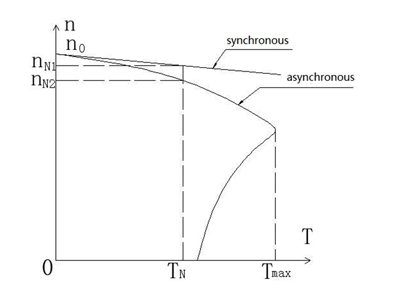

Powered by frequency converter, this series product has rated voltage of 380VAC or meets customer's requirements.It will enter constant-torque running under the rated frequency,or enter constant-power running above the rated frequency.
This series product can fully replace the Y2 and Y3 series low-voltage asynchronous motors,and be widely applied in the enterprises of petrochemical,mining,textile and others,to drive the machines such as fans,pumps compressors and belts.
The permanent magnet motor consists of stator, rotor, bearing device, end cover, junction box, fan/fan cover, in which, the stator is a fixed part of motor and consists of one stator core, base and 3-phase field winding. The rotor, as the revolving part of motor, is mounted with permanent magnet poles. Hiest provides customers with a series of standard and customized permanent magnet synchronous motors which have the following characteristics compared with the traditional asynchronous motors:
