Hiest

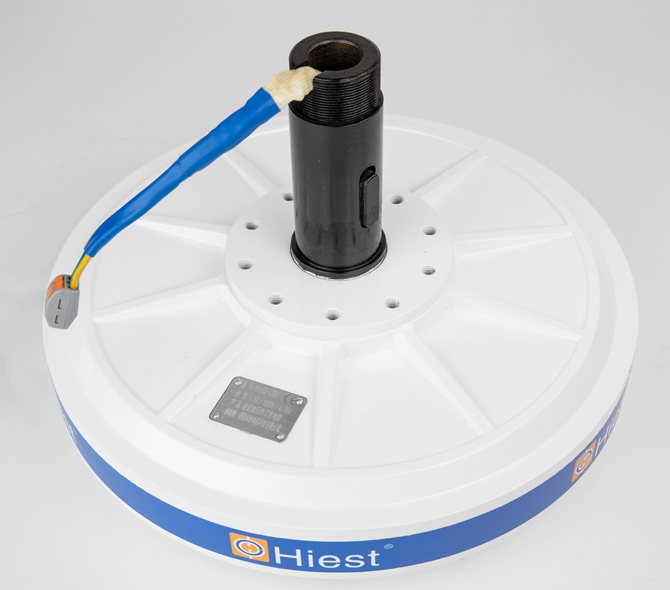

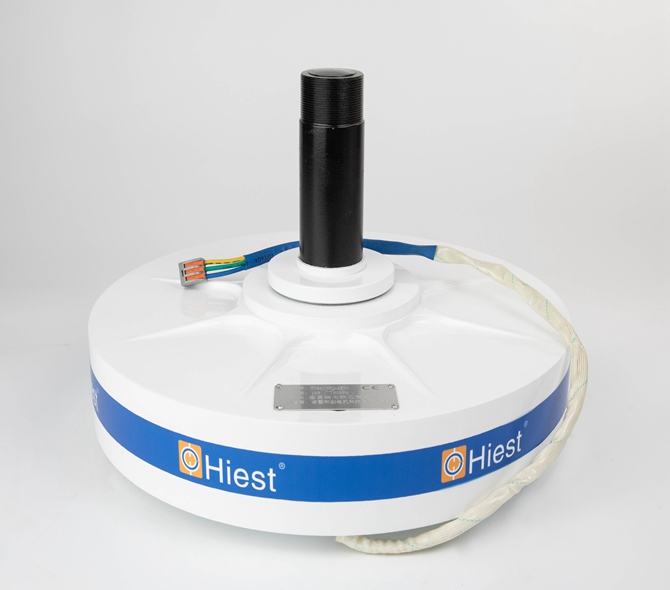

Permanent Magnet Generator -Inner Rotor
0.05kW-15kW

Customizable Parameters

Project Specifications
Rated Power 0.05kW-15kW
Rated Speed Customized
Rated Voltage Customized
Bearing Type NSK or SKF
Rotor Type Inner Rotor
Diameter Size 165mm-650mm
Efficiency Up to 90%
Certification CE

GET A QUOTE

Product Description

Featured by simple structure, reasonable design,and in particular,low wind speed at wind field, the coreless permanent magnet generator can have all-weather efficient operation and maximize the wind power.Being accepted widely in the world, the product has been sold to Europe, the USA and Southeast Asia.

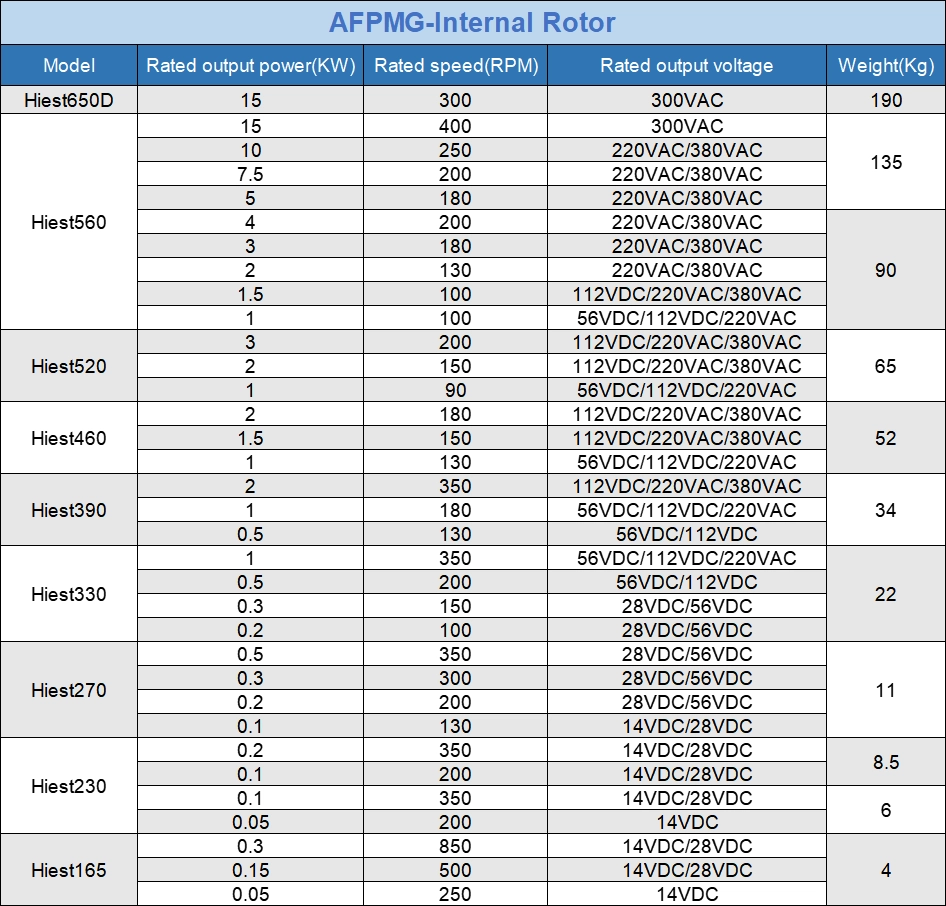

permanent magnet generator product categories 1.png

Core Product – Permanent Magnet Generator

Operationg range of PMG covers the the needs of smass wind turbines. For 1kW to 5kW wind turbines, can use a single rotor-single stator pf AFPMG, for 5kW to 50kW turbines, can use AFPMG with a construction of single rotor-double stators Our options generator diameter can be 165mmto770mm, also can provide you with the controller and inverter which is suitable for your wind turbine system
