As a technical enterprise engaged in R&D and production of efficient and energy-saving permanent magnet motors,Hiest can offer all models of textile motors for customers which mainly apply in the textile machinery such as covering machine, two-for-one twister,spinning frame and rapier machine.
Featured by fully-sealed and self-cooling structure,F insulation and S1 working duty,IP55 shell protection grade, this series product can be started directly or be powered by frequency converter as requested by customer.
This textile motor product mainly applies to textile machinery such as covering yarn machine,double twisting machine, straight twisting machine,spinning machine and rapire machine,and ect.

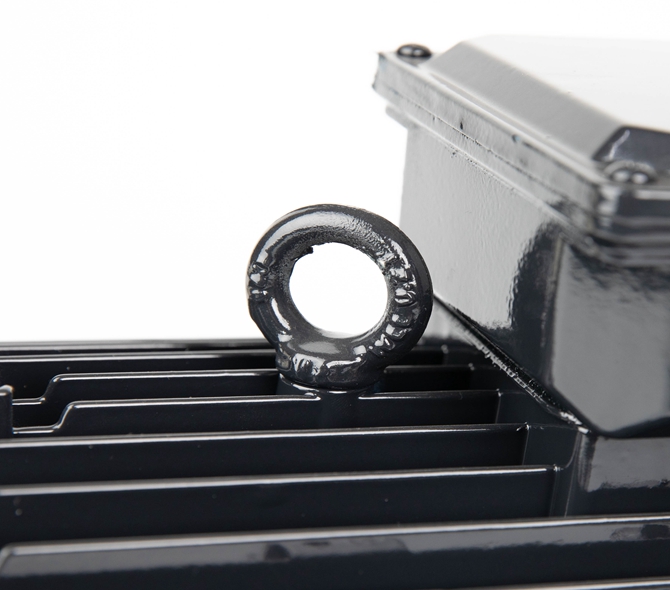

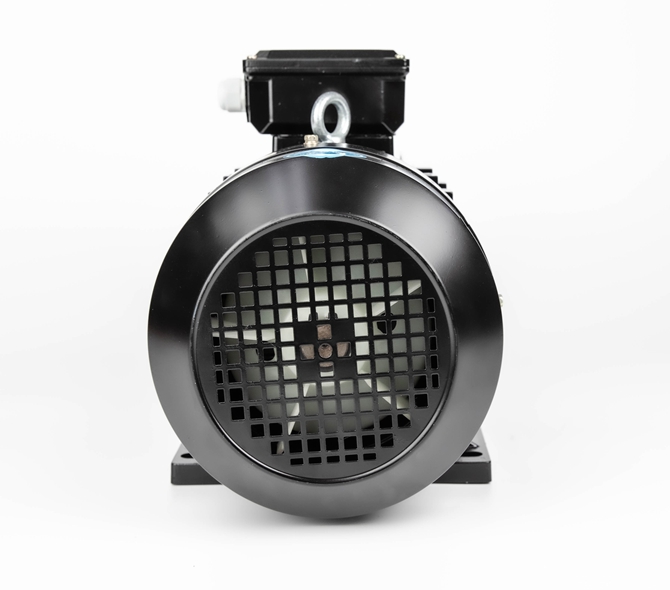

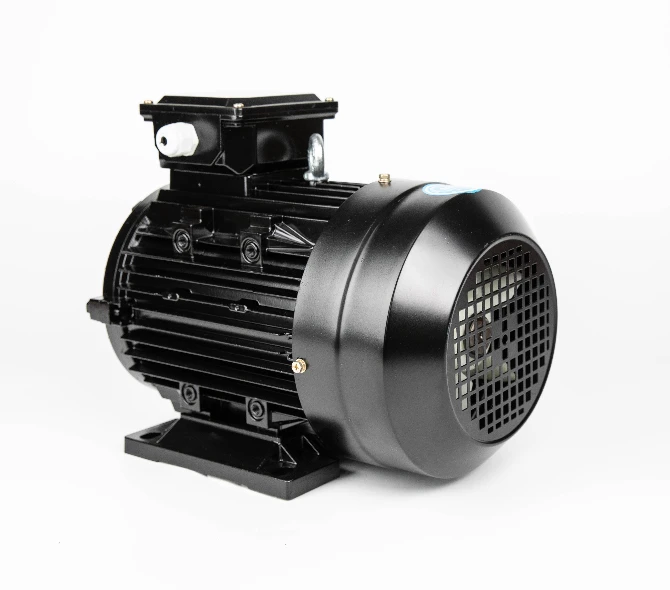

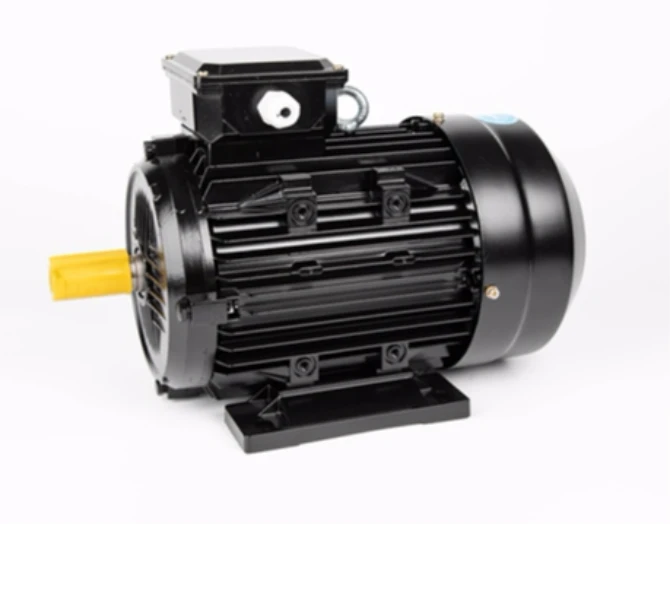

The permanent magnet motor consists of stator, rotor, bearing device, end cover, junction box, fan/fan cover, in which, the stator is a fixed part of motor and consists of one stator core, base and 3-phase field winding. The rotor, as the revolving part of motor, is mounted with permanent magnet poles. Hiest provides customers with a series of standard and customized permanent magnet synchronous motors which have the following characteristics compared with the traditional asynchronous motors:
