Three-disk Permanent Magnet Coupling

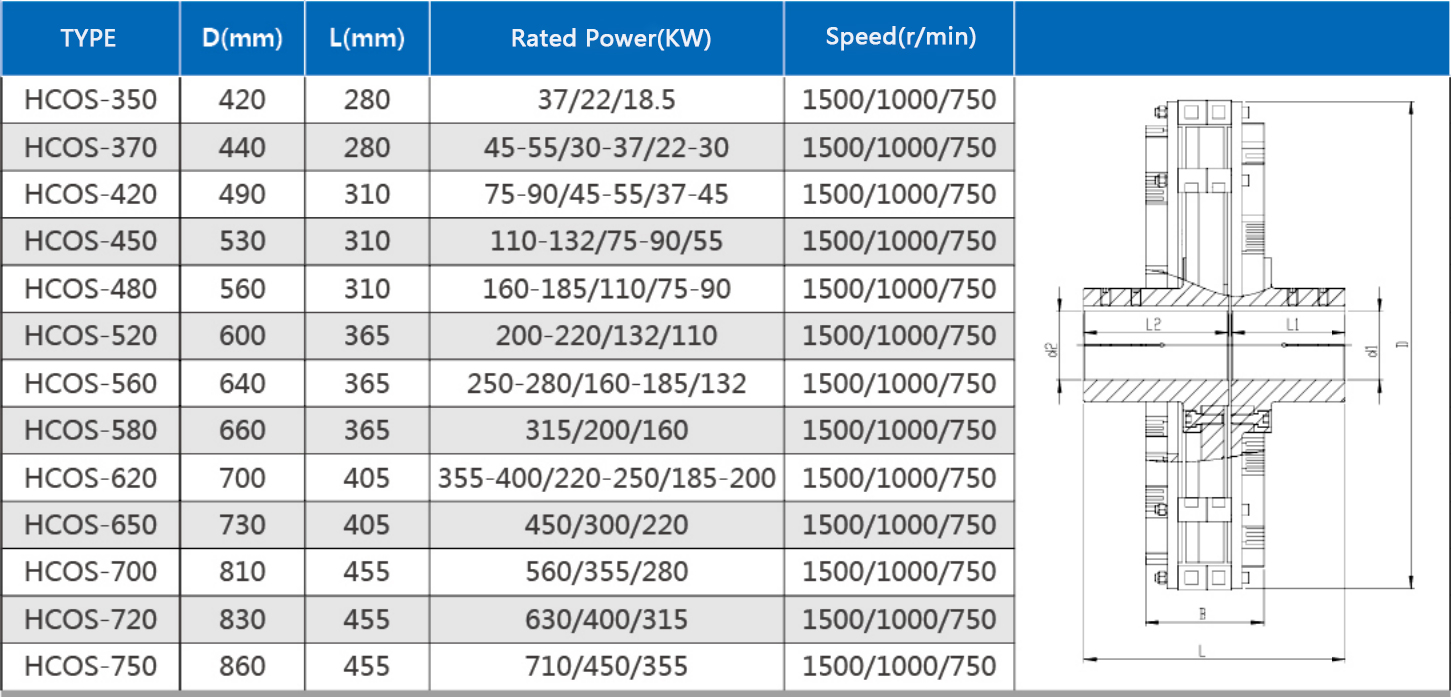

Customizable Parameters
  • Project Specifications
  • Rated Power Standard values
  • Rated Speed Customized
  • Diameter Size Customized

Product Description

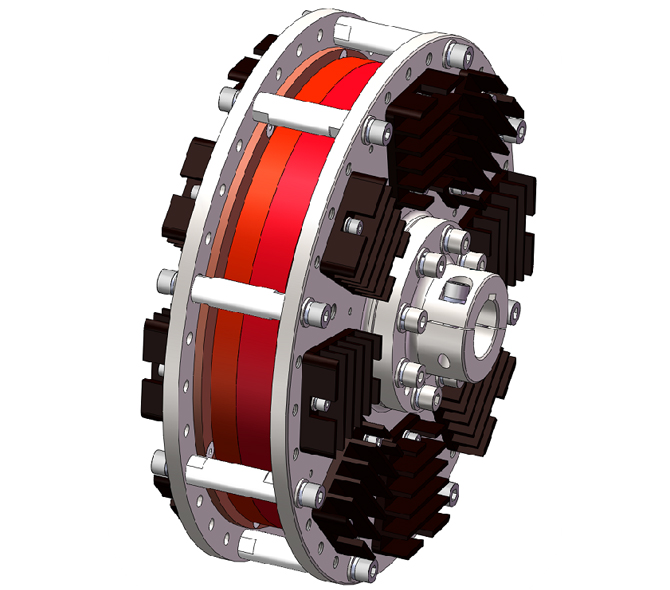

Three-disk Permanent Magnet Coupling

Use: Widely used in centrifugal fans, centrifugal water pumps and other equipment.

Working principle:

The three-disk permanent magnet coupling is generally composed of the permanent magnet rotor and the conductor rotor, between which there is a fixed air gap. When the active machine drives the conductor rotor to rotate and cut the magnetic force line in a circular motion relative to the permanent magnet installed on the driven end, the conductor rotor of the active end will generate eddy current induced magnetic field and interact with the magnetic field of the permanent magnet on the driven end, so as to realize the non-contact torque transfer between the active end and the driven end.


Product features:

1.It can realize soft start and soft brake of the motor, with overload protection function.

2.Flexible connection, which can effectively eliminate system vibration.

3.No need for precise alignment, allowing large deviations and simplifying the installation and commissioning process.

4.Simple structure and maintenance-free,can be convenient to the original system transformation


Core Product – Permanent Magnet Coupling

Through years of research and development, Hiest has mastered advanced permanent magnet eddy current drive technology and obtained national patents. We have carried out technology development, performance tests and practical application of permanent magnet coupling, which has been put into the market and has been recognized by many regional customers. It is widely used in various general mechanical equipment.
